(This post is slightly revised from a paper submitted for a class in Materials, Technology and Social Life at University of Southampton, 2018.)
1.
Pinewoods:
central Scottish Highlands, localized in Lake District and Fens, certain
mountains in Ireland
2. Birchwoods: Scottish Highlands, other Irish mountains, locally in southern Scotland, Lake District, Wales, southwest England
3. Hazel and elm woods: most of Ireland, locally in Wales and southwest England
4. Oak and hazel woods: western Ireland “and the rest of the Highland Zone of Great Britain.” A variant of this community in northern England included ash.
5. Lime: predominant across lowland England and north to Lancashire. The second-most common tree in limewoods was variously oak, hazel, or ash.
6. Alder: Throughout Britain but rare in Scottish Highlands, western Ireland and southwest England (Rackham, 1980:99, 1995:28-32).
Miles, cited above, is no scholar, but the
very existence of books like his and others’ about British oaks for a popular reading
audience is yet more evidence of the reverence in which the oak is held.
Referring
to wooden tubs, buckets, flasks, and cups recovered at Sutton Hoo, Comey (2013:109) wrote, “A fundamental aspect of any wooden object is the
species of tree or woody shrub from which it originates. Identification of
species is an important consideration for understanding these wooden vessels
and this is true of all archaeological wood….”
The
consideration is important because material choices reflect cultural decisions
and practices (Conneller,
2011). The act of producing any wooden
object is mediated through and by the material. Obtaining the wood, producing
and selecting appropriate tools, and the techniques or methods employed to work
it – all steps in the châine opératoire
– are cultural acts influenced by the material (Hurcombe,
2014). The finished object thus
reflects culture independently of the use to which it is put. As described by
Conneller, “materials are meaningful and these meanings are reciprocally
generated in the varied processes of people’s engagement with them. Tracing
these connections reveals past worlds” (2011:9).
Logboats
are the largest and most technologically sophisticated portable objects
recovered from pre-Bronze Age Britain and Ireland (Figure 1). Introduced in the Mesolithic or Neolithic, they remained
in use in the Atlantic Archipelago until the second half of the second millennium
AD (Gregory,
1997:23-24; Lanting, 1997), fulfilling important economic and social functions in a
range of applications, including transportation, fishing, and warfare. With wood
types and dates known for hundreds of archaeologically-recorded logboats (Lanting,
1997-1998), an analysis of the choice
of wood used in their construction might prove revealing of “lost worlds.”
Figure 1
Although
dozens – perhaps hundreds – of additional European finds have been made in the
more than two decades since Lanting’s summary and analysis of logboat dates
(1997), I have not updated his list, believing that the patterns he identified
are unlikely to change significantly by the addition of the new data. Likewise,
patterns present in the summary works of McGrail (1978a, 1978b, for England and
Wales), Mowat (1996,
for Scotland), Gregory (1997, for Ireland
and Scotland), and Fry (2000,
for Northern Ireland) are assumed to remain
substantially unchanged and no attempt has been made to gather new data
specific to Britain and Ireland, other than by reference to Lanting (1997-1998).
A Preponderance of
Oak
Wood
types identified in archaeological logboats in Britain and Ireland are summarized
in Table 1.
Table 1
Archaeological
Logboats by Wood Genus, Britain and Ireland
England and Wales1
|
Scotland2
|
Ireland
|
Total
|
|||||
#
|
%
|
#
|
%
|
#
|
%
|
#
|
%
|
|
Oak
|
76
|
96
|
58
|
92
|
1683
|
98
|
302
|
96.5
|
Pine
|
1
|
1.3
|
5
|
8
|
6
|
1.9
|
||
Elm
|
1
|
1.3
|
1
|
0.3
|
||||
Ash
|
1
|
1.3
|
1
|
0.3
|
||||
Alder
|
24
|
1.1
|
2
|
0.6
|
||||
Poplar
|
14
|
0.6
|
1
|
0.3
|
1 McGrail, 1978a:309
2 Gregory, 1997:162
3 Gregory, 1997:162
4 Lanting, 1997-1998-1998:628/table 1
Non-oak
boats that have been reliably dated are shown in Table 2. Where a range of
dates was available, the mean is shown.
Table 2
Dated
Archaeological British and Irish Logboats by Wood Genus (non-oak only)
Location
|
Date
BP
|
Wood
type
|
Ireland
|
||
Carrigdirty,
Co. Limerick
|
5820±40
|
poplar
|
Derrybrusk
1
|
2876±34
|
alder
|
Derrybrusk
2
|
2912±38
|
alder
|
Britain
|
||
Giggleswick
Tarn
|
650±30
|
ash
|
Warrington
11
|
950±90
|
elm
|
(Lanting, 1997-1998-1998)
The
preponderance of oak in the record is striking and calls for investigation. Was
oak simply the best choice, everywhere and always?
According
to McGrail (1978a:117),
the “ideal tree” for the construction of a basic logboat has the following characteristics:
- “Long straight bole of substantial girth and little taper, with straight grain and no recent branches low down.”
- durable, resistant to rot, easy to work, strong, lightweight
- located where it can be easily and safely felled and readily moved to a water-course
Five possible explanations might account for
the preponderance of oak:
- With few exceptions, oak was the only suitable timber available for logboat building.
- Oak is
represented disproportionately because
other woods decay more rapidly out of the archaeological record.
- Oak is represented disproportionately for reasons other than decay resistance – for example, because of the fortuitous nature of many logboat discoveries.
- Oak is functionally superior to other timbers to such a degree that it was the only logical choice.
- Oak was preferred for reasons other than functional ones – i.e., wood choice was influenced by ideological considerations.
Timber Availability
In the
“fully developed wildwood” of 5500-3100 BC, six different forest communities
were present in British Isles:
2. Birchwoods: Scottish Highlands, other Irish mountains, locally in southern Scotland, Lake District, Wales, southwest England
3. Hazel and elm woods: most of Ireland, locally in Wales and southwest England
4. Oak and hazel woods: western Ireland “and the rest of the Highland Zone of Great Britain.” A variant of this community in northern England included ash.
5. Lime: predominant across lowland England and north to Lancashire. The second-most common tree in limewoods was variously oak, hazel, or ash.
6. Alder: Throughout Britain but rare in Scottish Highlands, western Ireland and southwest England (Rackham, 1980:99, 1995:28-32).
Beginning
in the Neolithic, forests throughout Britain and Ireland were cleared for
agriculture and swine forage (Rackham, 1995:33-34). Forestry practices to
ensure a consistent supply of “wood” (i.e., small stuff suitable for building
hurdles and making charcoal, for example, as opposed to “timber” for heavy
construction) – were “widespread and ancient by the time of the Domesday Book
(1086)” in England (Rackham, 1980:3), although this practice of “woodmanship” did
not become common in Scotland until perhaps the 16th century
(Rackham, 1980:6).
After 1251, oak was “(b)y
far the commonest timber tree in nearly all kinds of woodland” (Rackham,
1980:145). It is important to note the qualifier “timber” in this statement. Starting
in the Neolithic, many trees that were not valued as timber were coppiced to
produce a steady supply of “wood” and constituted major components of many
woodlands (Rackham, 1995:38, passim).
Had they been valued for construction purposes, trees such as alder and poplar could
have been allowed to grow to timber.
Little oak grew in the Scottish Highlands,
but Scots pine was among the major forest communities there (Rackham, 1980; Mowat,
1996:6, 114-115, 129). Gregory states that oak was the only
readily available, suitable tree for logboats in Ireland (1997:168-170), but this
ignores alder and poplar, both of which are native (Tree Council of Ireland,
no date a, no date b). As in the case of Britain, alder, poplar,
and perhaps other genera might have been used, had they been managed for timber.
In summary, other tree types suitable for the
construction of logboats were available across much of Britain and Ireland
throughout the logboat era. Logboat builders’ material choice was not limited
to oak by lack of alternatives.
Differential Preservation
Differential preservation was mooted as an explanation
for the preponderance of oak in the archaeological record in the first modern,
comprehensive study of logboats in the region. Writing of England and Wales,
McGrail stated, “allowance must be made for possible bias in the survey, due to
oak’s greater durability” (1978a:309. See also Rackham
1980:18; Rogers, 2011:196).
Others have noted that several of the
earliest boats in the records of Europe and the British Isles are of non-oak
genera, concluding that these other woods would probably appear more frequently
in later finds had they been used (Gregory, 1997:168, 171;
Lanting, 1997:631; Rogers, 2011). Instead, the record shows not differential
preservation, but an evolution in wood choice. “The oldest logboats, from Pesse
(NL), Nandy l and 2 (Fr) and Noyen-sur-Seine (Fr) are made of pine. This is
certainly not a coincidence. Before 8000 BP, in northwestern Europe pine was
the only tree of sufficient length and diameter available for this purpose.
During the Later Mesolithic a clear preference existed for soft and easily
workable wood such as lime, alder and poplar/aspen” (Lanting, 1997-1998:645).
Oak becomes common in the record only with the arrival of the Neolithic.
In summary: if the record is skewed toward
oak by its superior resistance to rot, any such effect is likely to be small. Given
the size of Lanting’s survey (considering more than 600 dated logboats), the
possibility that the record is skewed substantially by random factors of
discovery is also small.
Functional Considerations
Oak is an excellent boatbuilding wood. It is
hard, strong, durable, and it does not absorb water readily (Boulton and Jay, 1944:54;
McGrail, 1998:26). Forest-grown trees tend to be tall and
straight and without low branches so that, given sufficient time to build
girth, they produce boles highly suitable to logboat construction (McGrail, 1998:26). According to Rogers, “In comparison with
other species, oak has an ideal combination of size, grain, strength,
workability and durability for building logboats” (2011:196).
This overstates the case. Workability varies
considerably from tree to tree (Boulton and Jay, 1944:55), and oak logboats can be carved with hand
tools only while the wood is green, as seasoned oak is too tough (Gregory, 1997:60-61). Fresh oak will not burn (Gregory, 1997:65,
71; but see Arnold, 2006, cited by Rogers, 2011:196, for possible
exceptions), precluding the use of fire as a transformative tool.
Oak’s reputation for workability is, in fact,
so dependent upon the availability of metal tools that it was formerly believed
that oak logboats could not be built with stone tools (Rogers, 2011:196. See
also Godwin and Deacon, 1974:60-61). Only late in the 20th century
were oak logboats dating to the Neolithic discovered (Rogers, 2011:196), strongly
suggesting that the polished stone axe is the minimum technology needed for
their production. Even so, the number of oak logboat finds in Britain and
Ireland increases dramatically with the Bronze Age (Lanting, 1997-1998), suggesting that processing with even the
best stone tools remained difficult.
The shift toward oak in the Neolithic was “probably
connected with a preference for longlasting wood” (Lanting, 1997-1998:645). Oak
is extremely durable and rot-resistant (Boulton and Jay, 1944:54), but so, too, are some other woods. Alder is
notably rot-resistant in wet environments, and Scots pine is also moderately
durable (Boulton and Jay, 1944: 37-38,
90).
While durability is a desirable quality, it
may come at an associated cost. Less durable timber may be more economical
overall if it costs less to purchase and can be worked more quickly into a
finished boat. Using published case histories (Goodburn and Redknap,
1988:19-20; Gilmore, et al, 2002:20-25), the author has compared the time required
to build logboats in oak and a softer species. The unpublished results indicate
that softer woods can be converted into finished logboats with less labour – a
conclusion supported by common sense.

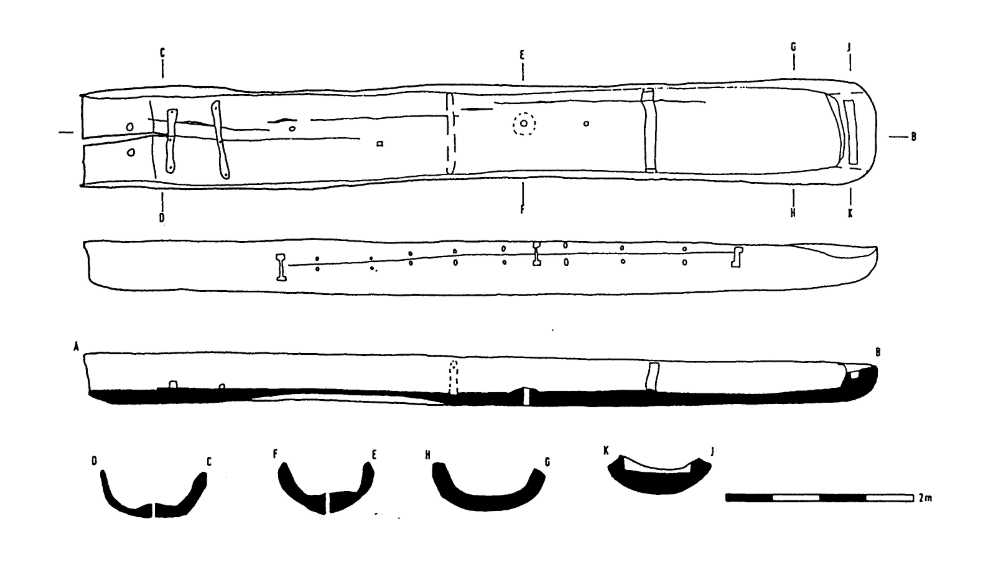

The importance of oak’s proverbial strength
is also questionable. A logboat is a monocoque structure with a great deal of
inherent strength, and it is not clear that small logboats built of woods of
lesser strength would be more prone to breakage in use. Splitting, not shear
failure, appears to be the most common form of breakage, as many archaeological
oak logboats exhibit repairs made to splits that occurred while the boats
remained in use (McGrail, 1978a, 1978b;
Mowat, 1996; Gregory, 1997; Fry, 2000) (Figure
2). Oak is “very prone to split and check”
(Boulton and Jay, 1944:55). Alder, lime, poplar, and Scots pine are all
less prone to splitting (Boulton and Jay, 1944:37,
52, 59, and 89). Neither alder nor lime are strong woods;
but poplar is “fairly strong for its weight,” and Scots pine, while variable,
can be notably strong (Boulton and Jay, 1944:37,
52, 59, 89).
Figure 2
The logboat from Ballinphort, Ireland, had repaired cracks in the bottom and port side. (image: Gregory, 1997:280/fig.4)
|
Oak’s weight is another liability. A boat of
lime, a less dense and therefore more buoyant wood (~35 lb./cu.ft. vs. ~45
lb./cu.ft., Boulton and Jay, 1944:52, 54), would have higher freeboard and greater
loading capacity than an equivalent one of oak. With identical loads, the lime
boat would be lighter and thus easier to maneuver (Gregory, 1997:166) both on
and off the water.
Location
The final functional consideration in the
selection of logboat timber is its location (McGrail, 1978a:117). Obviously,
this is related to the previous discussion of availability within the surrounding
environment. Here, however, I will discuss location in terms of its
implications for the builder.
By the late Bronze Age, Britain had undergone
significant deforestation (Hooke, 2010:113-121). This, combined with oak’s natural rarity in
some regions, must have made it even more difficult of access and costly. The smaller
average size of Scottish than English logboats (Mowat, 1996:125) and the occasional use of washstrakes to
increase their freeboard (Mowat, 1996:123) (a feature present on but a single English
example (McGrail, 1978a:313)) may reflect a shortage of timber of adequate
size.
In most situations of this nature,
woodworkers choose alternative timber. “Trees are more interchangeable than is
often supposed, and people adapt their carpentry to the trees at their disposal
rather than vice versa,” writes Rackham (1980:7). “Most of the work
traditionally done by oak, ash, elm, hazel, and beech in England is done in the
Alps by larch, spruce, and two species of pine and in north Norway by birch
alone.”
Rackham was writing of wood use in general,
but the principle applies to logboats in particular. In the absence of oak,
other hardwoods and softwoods were used to build logboats in Scandinavia (Eskerod, 1956, cited in
Gregory, 1997:19; McGrail, 1978a:28-29). When their preferred tree species became
locally unavailable late in the 20th century, the Maijuna people in
the Peruvian Amazon adapted by using at least seven alternative species and going
so far as to change construction methods and boat design to make best use of the
new woods (Gilmore et al, 2002:13-18).
In contrast, where oak was rare or absent in the
England, it was imported from other parts of the island (Rackham, 1980:164). “Man
uses all sorts and sizes of timber available, and will import them if they are
not available locally” (Quelch, 2005:104). It is unclear oak was ever moved long
distances within Britain specifically for logboat construction, but this would
appear so at least in the case of the Scottish Highlands, where oak did not
grow. It is possible, however, that finished oak logboats, not oak timbers,
were imported to the Highlands.
It is a surely coincidence that the
percentage of timber comprised by oak in ancient English buildings – 97%
(Rackham, 1980:145) – aligns so closely with the percentage of oak in the
logboat record of Britain and Ireland – 96.5% (see Table 1) – but the overwhelming dominance of oak in both
contexts is probably related. That builders of buildings and logboats in many
parts of Britain were apparently willing to incur the additional expense of
imported oak when other functionally suitable genera were available locally,
and that such a practice persisted for so long, suggests motivation of an
ideological nature.
Oak’s Ideological Implications
An
abundance of tree- and wood-related symbolism, folklore, and religious
practices attest to the material’s widespread ideological significance
throughout European pre/history. Sacred groves and trees – entire species as
well as individual trees – appear in ancient Greek, Roman, Germanic, and Celtic
history and myth, and particularly in those of Britain and Ireland (Dowsett,
1942:101; Hooke, 2010:10-11).
Oak
was only one of the trees held sacred in Britain and Ireland, along with ash,
elder, whitethorn, hawthorn, hazel, and yew (Hooke,
2010:13-14, 98, 103-104, 244-245; Mac Coitr, 2010:8-11). Oak was associated with qualities such as life,
strength, long or eternal life, kingship, and “the sacred,” but so were others (Mac
Coitr, 2010:61-68). Of five great legendary
trees in Irish mythology, one was oak, one was yew, and three were ash (Hooke,
2010:13).
But in many respects, oak has played the starring
role in the sylvan culture of Britain, if somewhat less so in Ireland (Hooke, 2010:193-195). It was used symbolically in much ritual
architecture, including timber circles (Hooke 2010:7-8), cathedrals (Hadfield, 1974:127), and in mortuary contexts (e.g., Evans and Hodder,
2006:192). Oak is prominent in folklore, myth, lore, and
legend throughout British culture, examples including:
- Celebrations featuring symbolic use of oak,
including Beltane and Samhain (Dowsett, 1942:99-100) and the Yule log (Miles, 2013:82-83)
- Gospel oaks (Miles, 2013:83-84)
- a wide range of “sayings and beliefs,” for example, “Great oaks from little acorns grow.” (Miles, 2013:90-91, 110)
- thousands of place-names incorporating variants of the word “oak” (Hadfield, 1974:174; Nelson and Walsh, 1993, cited in Mac Coitr, 2010:21; Hooke, 2010:167, passim)
- the tale of Charles II hiding in an oak after the Battle of Worcester, and the roughly 600 pubs named “Royal Oak” in commemoration of the event, plus Royal Navy ships of that name, and Royal Oak Day (Miles, 2013:85-87, 108-109) (Figure 3)
- depictions of oak leaves on coins and on various military medals and insignia (Miles, 2013:109)
- dozens of named trees, famous for their size, longevity, or role in history or legend (Miles, 2013)
- “Hearts of Oak” – the official quick-march of the Royal Navy and a symbol of its sailors – and the patriotic symbolism represented by the “wooden walls” of England’s largely oak-built sailing navy.
Figure 3
Hundreds of “Royal Oak” establishments attest to the tree’s special role in Britain’s culture and collective psyche. (image: Miles, 2013:108).
|
On
the other hand, oak was also used widely throughout pre/history for the most
mundane affordances, including causeways, livestock enclosures, charcoal,
tools, tanning, pig feed, barrel staves, and fish-smoking (Miles, 2013:14, 23).
On a superficial view, these mostly destructive or temporary applications
hardly appear to reflect reverence for the material.
One must be cautious, though, of imposing a
contemporary worldview on the past. “Modern, Western perceptions of trees and
timber will differ from those (of the past)” (Bintley and Shapland,
2013:5). The nature of the sacred residing in the archaeological
mundane is eloquently expressed by Mac Coitr:
“Taking an example unrelated to trees, the Plain (sic) Indians of North America regard the
buffalo as sacred, since it provides them with food from its meat, clothing and
shelter from its hide, and various implements from its bones. It is seen as a
gift from the Creator, imbued with supernatural powers, sacred because of its
many important practical uses, not despite them. In the same way the oak was
regarded as particularly favoured by the gods due to its many valuable attributes.
The distinction between the sacred and the practical, therefore, is a very
modern approach and it is inappropriate to project the distinction onto people
who would not have understood it” (2010:5).
Among oaks’ several symbolic meanings are
strength, steadfastness, longevity, courage, dignity, abundance, and nobility (Hooke, 2010:104; Mac
Coitr, 2010:16-17; Miles, 2013:14). In various contexts, it has been associated
with Christianity, unredeemed paganism, fertility, and nature in general (Hooke,
2010:99-100). Most of these associations are positive, but they are also
diverse.
“Problems
are encountered … when wood species are attributed so many powers, symbolic
meanings, and uses as status indicators that it would seem impossible to
unravel which precise or multiple motive induced the use of a certain wood.
This applies especially to the most common species of wood …” such as oak (Therkorn
et al., 1984:362).
Given
their likely priorities of strength and durability in logboats (separate from
the question of whether softer woods might be suitable in these regards), it
seems probable that logboat builders and owners were influenced by oak’s
symbolic strength and steadfastness. Beyond that, reliable conclusions about
the “meaning” of oak in logboats are probably not possible.
Historical Implications
Influenced
by its symbolism, British and Irish logboat builders might have attributed to oak
greater functional superiority over other wood types than was warranted. This
might have caused them to overlook the affordances of other genera and may help
explain the disappearance of the logboat from the islands.
Logboats
disappeared from Scotland and Ireland sometime after the middle of the eighteenth
century – about the same time that Ireland became almost entirely deforested
and Scotland was denuded of deciduous trees, including oak (Gregory, 1997:56). While
this would inevitably have killed off the craft in Ireland, the Scots might
have, but did not, avail themselves of the remaining alternative of Scots pine.
Was this due to the belief that oak was the only suitable timber for logboats?
The
situation south of Scotland is less clear. The latest scientifically dated
English logboat dates to 410 +60 BP (Lanting,
1997-1998:629/table 2) – i.e., a century or two
earlier than the latest evidence for Ireland and Scotland. Although large areas
of England were deforested by this time, huge amounts of oak, much of it
imported, continued to be used in buildings and ship construction well into the
19th century (see,
for example, Oster, 2015:3‑4 for Royal Navy timber consumption and imports). The end of logboat use in England therefore appears to
be unrelated to availability, although increased cost may have been an issue.
Throughout
Britain and Ireland, the near-exclusive use of oak may have constrained not
only logboat size, but also boat designs and construction techniques. Softer
timbers, including poplar and some pines, can be used to build expanded
logboats. Wider than an unexpanded boat built from the same log, an expanded
logboat is more stable, and thus better suited to certain uses (McGrail,
1998:66-70). Although expansion
results in lower freeboard, this can be overcome by the addition of washstrakes
(Figure 4). A simple “dugout” can
thus become the basis for a larger and more capable boat, and expanded-extended
logboats are known from many cultures (Johnstone,
1980:47-51). The British commitment to
oak, which is generally thought not to be expandable, foreclosed this line of development. (See, however, Black, ND.) Likewise,
because green oak does not burn, British logboat builders never had the luxury
of using fire as a tool to make hollowing the log easier (Gregory,
1997:258). Whether these affordances
of other woods would have been explored in Britain in the absence of a near-exclusive
commitment to oak is, of course, unknowable.
Figure 4
Stages in
construction of an expanded-extended logboat. Top: carved but unexpanded. Center:
expansion in process to increase beam. Bottom: washstrakes being added to raise freeboard.
(images:
Johnstone, 1980:49-50/figures 5.5, 5.6, 5.7)
Summary and Conclusions
This
paper noted the predominance of oak in the logboat record of Britain and
Ireland and posited a variety of possible explanations. Lack of available timber
options, preferential preservation in the archaeological record, and oak’s superior
engineering characteristics were considered. These explanations were found to
be false or inadequate, leaving ideologically-based preference as the remaining
explanation.
Trees
in general were shown to have profound spiritual implications throughout pre/history
and cross-culturally, and some of the symbolic qualities associated with oak
were discussed. It was suggested that the symbolic association between oak and
the qualities of strength and durability was a likely factor influencing its
preferred status in logboats.
Finally,
the implications for logboat design and construction were discussed, and it was
suggested that the near-exclusive commitment to oak in Britain and Ireland might
have limited the technological development of the logboat type and associated
construction methods.
# # #
References cited
Arnold, B. (2006) ‘Archéologie expérimentale: la pirogue
néolithique expansée Paris-Bercy 6 et les arts du feu’, Archéologie
neuchâteloise, 34, pp. 65–77.
Bintley,
M. D. and Shapland, M. G. (2013) ‘An Introduction to Trees and Timber in the
Anglo-Saxon World’, in Bintley, M. D. and Shapland, M. G. (eds) Trees and
Timber in the Anglo-Saxon World. Oxford: Oxford University Press, pp. 1–18.
Black, L. W. (ND) 'Fieldwork Report: An Experimental Study on oak as a viable material for the manufacture of expanded log boats', Available at: https://www.academia.edu/31030854/An_Experimental_Study_on_oak_as_a_viable_material_for_the_manufacture_of_expanded_log_boats
Boulton,
E. H. B. and Jay, B. A. (1944) British Timbers: Their Properties, Uses and
Identification. London: Adam and Charles Black.
Mac
Coitr, N. (2010) Irish Trees: Myths, Legends & Folklore. Cork: The
Collins Press. Available from: ProQuest Ebook Central. [4 December 2018].
Available at: https://ebookcentral.proquest.com/lib/soton-ebooks/detail.action?docID=1620188.
Comey,
M. G. (2013) ‘The Wooden Drinking Vessels in the Sutton Hoo Assemblage:
Materials, Morphology, and Usage’, in Bintley, M. D. and Shapland, M. G. (eds) Trees
and Timber in the Anglo-Saxon World. Oxford: Oxford University Press, pp.
107–121.
Conneller,
C. (2011) ‘Introduction: Making Materials Matter’, in An archaeology of
materials: substantial transformations in early prehistoric Europe. London:
Routledge, pp. 1–23. doi: 10.1364/OE.26.027058.
Dowsett,
J. M. (1942) The Romance of England’s Forests. London: The Scientific
Book Club.
Eskerod,
A. (1956) ‘Early Nordic Arctic Boats’, Artica, pp. 57–87.
Evans,
C. and Hodder, I. (2006) A Woodland Archaeology: Neolithic sites at
Haddenham. Cambridge: McDonald Institute for Archaeological Research.
Fry,
M. (2000) Coití: Logboats from Northern Ireland. Antrim: Greystone
Press.
Gilmore,
M. P., Eshbaugh, W. H. and Greenberg, A. M. (2002) ‘The use, construction, and
importance of canoes among the Maijuna of the Peruvian Amazon’, Economic
Botany. Springer-Verlag, 56(1), pp. 10–26. doi:
10.1663/0013-0001(2002)056[0010:catuca]2.0.co;2.
Godwin,
H. and Deacon, J. (1974) ‘Flandrian History of Oak in the British Isles’, in
Morris, M. G. and Perring, F. H. (eds) The British Oak: Its History and
Natural History (B.S.B.I. Conference Reports 14). Faringdon, Berkshire, UK:
E. W. Classey, Ltd. for The Botanical Society of the British Isles, pp. 51–61.
Goodburn,
D. and Redknap, M. (1988) ‘Replicas and wrecks from the Thames area.’, The
London archaeologist, 6(11), pp. 7-10,19-22.
Gregory,
N. (1997) A Comparative Study of Irish and Scottish Logboats. University
of Edinburgh.
Hadfield,
M. (1974) ‘The Oak and its Legends’, in Morris, M. G. and Perring, F. H. (eds) The
British Oak: Its History and Natural History (B.S.B.I. Conference Reports 14).
Faringdon, Berkshire, UK: E. W. Classey, Ltd. for The Botanical Society of the
British Isles, pp. 123–129.
Hooke,
D. (2010) Trees in Anglo-Saxon England: Literature, Lore and Landscape.
Woodbridge, Suffolk: The Boydell Press.
Hurcombe,
L. M. (2014) Perishable Material Culture in Prehistory: Investigating the
Missing Majority. London and New York: Routledge.
Illustrated
London News (1886) ‘Discovery of logboat in
Brigg in 1886’. Available at: https://commons.wikimedia.org/wiki/File:Discovery_of_logboat_in_Brigg_in_1886.jpg.
Johnstone,
P. (1980) The Sea-Craft of Prehistory. Cambridge, Massachusetts: Harvard
University Press.
Lanting,
J. N. (1997) ‘Dates for origin and diffusion of the european logboat’, Palaeohistoria,
39/40, pp. 627–650. Available at:
https://ugp.rug.nl/Palaeohistoria/article/view/25107/22563.
McGrail,
S. (1978a) Logboats of England and Wales with comparative material from
European and other countries, Vol. 1. Greenwich: BAR British Series 51(i),
National Maritime Museum.
McGrail,
S. (1978b) Logboats of England and Wales with comparative material from
European and other countries, Vol. 2. Greenwich: BAR British Series 51(ii),
National Maritime Museum.
McGrail,
S. (1998) Ancient Boats in North-West Europe: the archaology of water
transport to AD 1500. Harlow: Addison Wesley Longman.
Miles,
A. (2013) The British Oak. London: Constable & Robinson.
Mowat,
R. J. C. (1996) The Logboats of Scotland. Oxford: Oxbow Books.
Nelson,
C. and Walsh, W. (1993) Trees of Ireland. Dublin: Lilliput Press.
Oster,
R. (2015) Great Britain in the Age of Sail: Scarce Resources, Ruthless
Actions and Consequences. Air University. Available at:
http://www.dtic.mil/dtic/tr/fulltext/u2/1012795.pdf.
Quelch,
P. R. (2005) ‘Structure and utilisation of the early oakwoods’, Botanical
Journal of Scotland, 57(1–2), pp. 99–105. doi: 10.1080/03746600508685087.
Rackham,
O. (1980) Ancient Woodland: its history, vegetation and uses in England.
London: Edward Arnold.
Rackham,
O. (1995) Trees and Woodland in the British Landscape. Revised Ed.
London: Weidenfeld & Nicolson.
Rogers,
J. S. (2011) ‘Czech Logboats : Early inland watercraft from Bohemia and
Moravia’, in Sborník prací Filozofické fakulty brněnské university, řada
archaeologická. (Proceedings of the Masaryk University Faculty of Arts,
Archaeology series). Brno, Czech Republic, pp. 171–202.
Therkorn,
L. L. et al. (1984) ‘An Early Iron Age Farmstead: Site Q of the
Assendelver Polders Project’, Proceedings of the Prehistoric Society,
50, pp. 351–373.
Tree
Council of Ireland (no date a) Alder - Fearnóg (Alnus glutinosa). Available at: https://treecouncil.ie/project/alder/
(Accessed: 8 January 2019).
Tree
Council of Ireland (no date b) Aspen - Crann creathach (Populus tremula). Available at: https://treecouncil.ie/project/aspen/
(Accessed: 8 January 2019).
Fascinating Paper Bob Holtzman. It is insightful to examine these boats primarily from the perspective of trees species and combining with available technology gives great pause for thought... I would contend that the poplar dugout boat from Carrigdirty is indeed a dugout boat. However, I excluded and discounted the two alder discoveries as being dugout boats. While definitely artefactual and archaeological, insufficient remains survived to warrant their inclusion as dugout boats and were more characteristic of the end remains of troughs carved from the trunk; namely they did not fulfill the criteria of being boats - of sufficient length to width ratio, definitive boat shape (in terms of performance or operational characteristics). Just the end of each remained that while they displayed a cross-sectional profile that demonstrated displacement and floatation values, they also presented reduced manoeuvrability. Fry and I discussed this and he continued to attribute them as being the stern ends of boats. But I have remained singularly unconvinced. In terms of use of fire to hollow green oaks, I remain behind it just not being practical for the reasons cited. However Ryan (whose surname I can not remember!) has since experimented with this at Buster Farm. Hiss work demonstrates that fire is perfectly practical use in hollowing season oak (not green) and when hard seasoned oak is impractical for hand tool hollowing. He has further surmised that seasoned oaks with heartwood rot could have been favoured as part of the hollowing has been done by nature and followed up with fire. The open stern would then at final stages be completed with a fitted transom. I still can't remember his surname - Sorry Ryan! Great paper Bob.
ReplyDelete
